HPX150 - Mitsui Seiki

HPX150 With FANUC 500i-A

  • Ultra Precision ball screw linear axis drives
  • High Performance gear drives for rotary axes
  • Hand scraped components ensures geometric accuracy
  • Hardened & ground steel box ways
  • World leading accuracy for fine boring & turn boring
  • Suitable for a wide variety of materials
  • Exceptional roughing & fine surface finishing in hard materials
  • Environmentally concious design & manufacture
  • Various Factory Automation and Integration solutions
Inquire Now

Specifications and Standard Features

The HPX150 is the latest version of Mitsui Seiki's large, heavy-duty, 4-axis machining center. This machining center is available with a W-axis quill for complex precision line boring operations. The HPX series machines are delivering exceptional performance & profitability for a wide variety of industry OEM's and their supply chains including energy, heavy equipment, ship building, aerospace, machine tools and general large ultra precision machining.
Working Capacity Spindle Axis Speed Precision Automation Footprint (min.)
X axis Table longitudinal stroke:
3,000 mm (118.11") (Option: 1800mm)
Y axis Spindle head vertical stroke:
2,000 mm (78.74") (Option: 1500mm)
Z axis Column longitudinal stroke:
1,600 mm (63") (Option 1200mm)
W axis Quill
500mm (19.68") (Option: no quill)
B axis (rotary):
Infinite 360,000 positions

Table (Pallet)

Working surface:
1,500mm square (59.05") (Option: 2200 x 1800mm)
Maximum work piece swing
2,800 mm Ø (110.24" Ø)
Max permissible load:
15,000 kg (33,000 lb.) (Option: 8,000kg)
Height from floor to table top:
1,500 mm (59.5")
Speed
2,250RPM
Taper
50T
Quill diameter
130mm Ø (5.11" Ø)
Power (max.)
AC 37 / 30 kW (50 / 40 HP)
Torque (max.)
2,193 Nm / 1,778 Nm (1617 ft-lbs / 1311 ft-lbs)

Rapid traverse

X, Y and Z axis:
15,000 mm / min (590 IPM)
B axis (rotary):
2 RPM

Cutting feed

X, Y and Z axis:
0.1 - 10,000 mm/min (0.004 - 394 ipm)
B axis (rotary):
0.1 - 720 deg. / min

Positioning Accuracy (JIS):

X axis:
+/- 005mm/full travel (+/- 00024"/full travel)
Y and Z axis:
+/- 003mm/full travel (+/- 00012"/full travel)
B axis:
± 4 arc sec.

Repeating accuracy (JIS):

X, Y and Z axis:
+/- 001mm/full travel (+/- 00004"/full travel)
B axis:
± 2 arc sec.

Axis Position Feedback

X, Y, Z axis:
Absolute Linear Glass Scale
B axis:
Absolute Rotary Scale Encoder
Tool Changer Capacity
60ATC (opt. 90 to 540) (Extended robot capacity)
Work Handling
2-APC; (opt. 4 Pallet Pool, FMS)
Length:
9400 mm (370")
Width:
7,400 mm (291")
Machine Weight:
50,000kgs (110,000 lbs.)

Similar Machines

HU100

The HU100 is a long standing Mitsui Seiki legacy 4-axis machining center. Our HU style machines continue to demonstrate capability to deliver exceptional performance & profitability for a wide variety of industry OEM's and their supply chains includi...
HU100-5XLL

HU100-5XLL

The HU100-5XLL is currently Mitsui Seiki's largest legacy 5-axis machining center. Our HU100-5X line of larger trunnion style machines have all demonstrated capability to deliver exceptional hard metal performance & profitability for the aerospace OE...

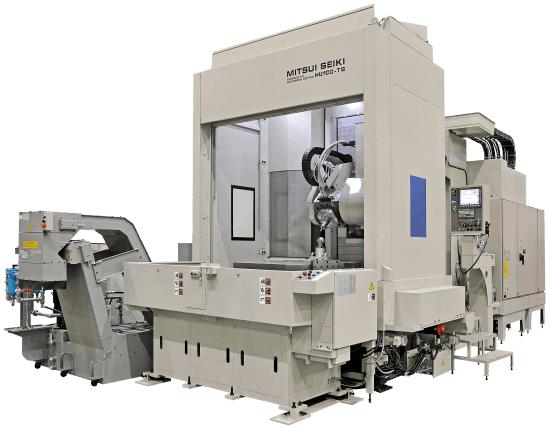

HU100-TS-HD
