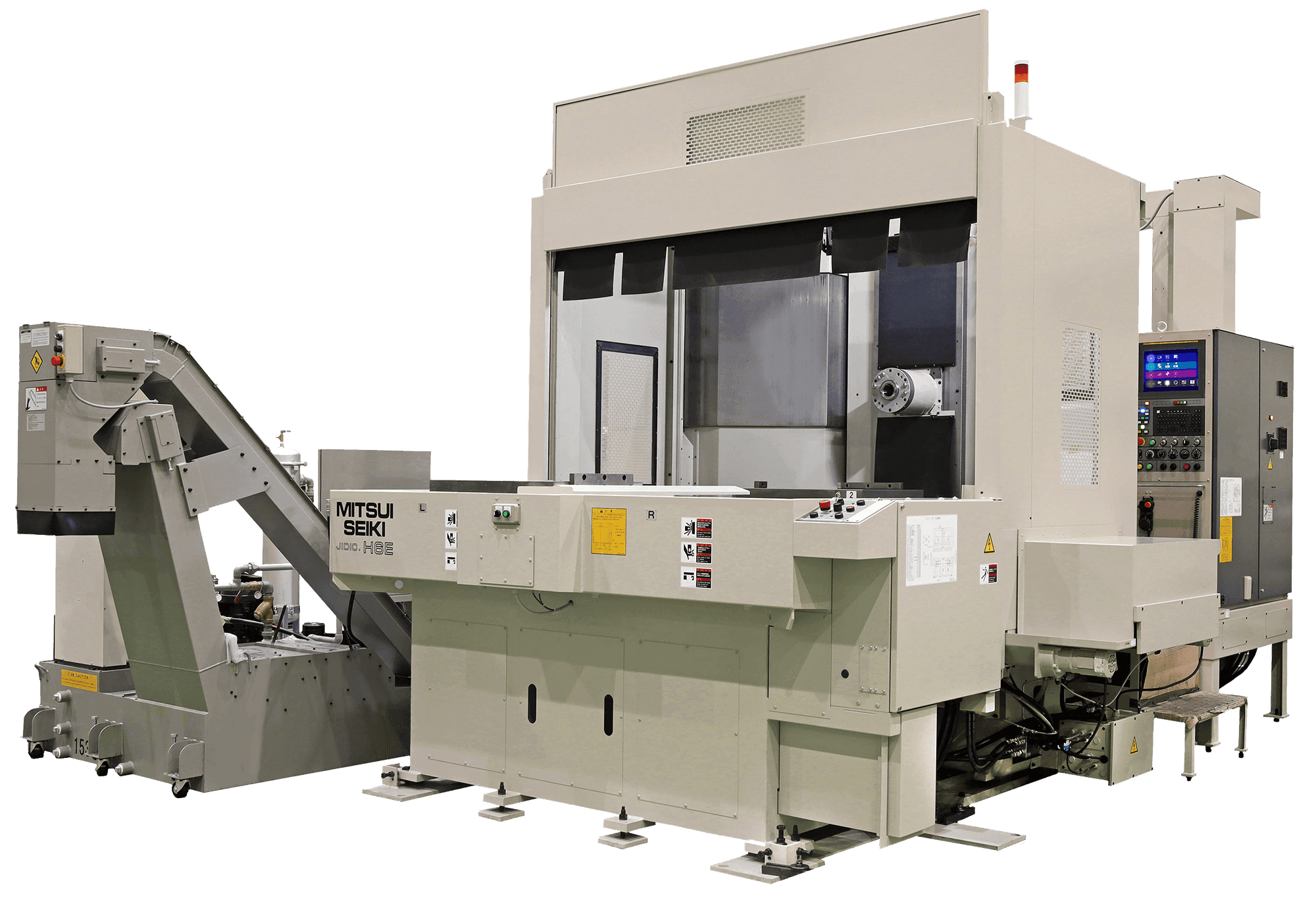

H6E Jidic - Mitsui Seiki

H6E With FANUC 30i-B-Plus with Panel iH Pro

  • Ultra Precision ball screw linear axis drives
  • High Performance gear drives for rotary axes
  • Hand ultra-scraped components ensures exceptional geometric accuracy
  • V-V Slideways for X, Y, & Z-axes assures geometric stability
  • Needle roller bearing for X-Y & Z-axes for virtual "Zero" stick slip & friction
  • World's best accuracy for fine boring & turn boring
  • Suitable for a wide variety of materials
  • Environmentally concious design & manufacture
  • Various Factory Automation and Integration solutions
Inquire Now

Specifications and Standard Features

The H6E Jidic replaces the legacy Mitsui Seiki H6D 4-axis Horizontal Jig Borer. Our Jidic style machines continue to demonstrate capability to deliver exceptional workpiece accuracy & profitability for a wide variety of industry OEM's and their supply chains including mold & die, semi conductor, screw copmpressor, automotive, aerospace and general ultra precision machining. The machine is also well well regarded in industries producing ultra high precision optics, housings, gear cases.
Working Capacity Spindle Axis Speed Precision Automation Footprint (incl. 2-APC & maintenance space)
X axis Table longitudinal stroke:
1300 mm (51.2")
Y axis Spindle head vertical stroke:
900 mm (35.4") (Option 1,200 mm)
Z axis Column longitudinal stroke:
900 mm (35.4")
B axis (rotary):
Infinite 0.0001 deg. (3,600,000 positions)
Distance from table center to spindle nose:
150 - 1050 mm (5.9" - 41.3")

Table (Pallet)

Working surface:
800mm square (31.5")
Maximum work piece swing in work zone
1470 mm Ø (57.9" Ø)
Max permissible load:
1,600 kg. (3520 lb.)
Height from floor to table top:
1,415 mm (55.7")
Speed
6,000 RPM (opt. 12,000, 15,000RPM)
Taper
50 Taper
Power (max.)
AC 22 kW (30HP) (Opt. 30kW)

Rapid traverse

X, Y and Z axis:
5,000 mm / min (200 ipm)
B axis (rotary):
4 RPM

Cutting feed

X, Y and Z axis:
0.1 ~ 4,000 mm / min (0.004 ~ 157 IPM)
B axis (rotary):
0.1 ~ 1,440 deg. / min

Positioning Accuracy (JIS):

X, Y and Z axis:
+/- 002mm/full travel (+/- 00008"/full travel)
B axis:
± 3 arc sec.

Repeating accuracy (JIS):

X, Y and Z axis:
+/- 001mm/full travel (+/- 00004"/full travel)
B axis:
± 1.5 arc sec.

Axis Position Feedback

X, Y, Z axis:
Absolute Linear Glass Scale
B axis:
Absolute Rotary Scale Encoder
Tool Changer Capacity
60ATC (opt. 90 to 540) (Extended robot capacity)
Work Handling
2-APC; (opt. 8/10/12 Pallet Pool, Robot Loader; FMS)
Length:
7,000 mm (275")
Width:
6,000mm (235")
Machine Weight:
22,000kg. (48,400 lbs)

Similar Machines

H5D

The H5D Jidic is a long standing Mitsui Seiki legacy 4-axis Horizontal Jig Borer. Our Jidic style machines continue to demonstrate capability to deliver exceptional workpiece accuracy & profitability for a wide variety of industry OEM's and their sup...

HU80EX

The HU80EX is a long standing Mitsui Seiki legacy 4-axis machining center. Our HU style machines continue to demonstrate capability to deliver exceptional performance & profitability for a wide variety of industry OEM's and their supply chains includ...

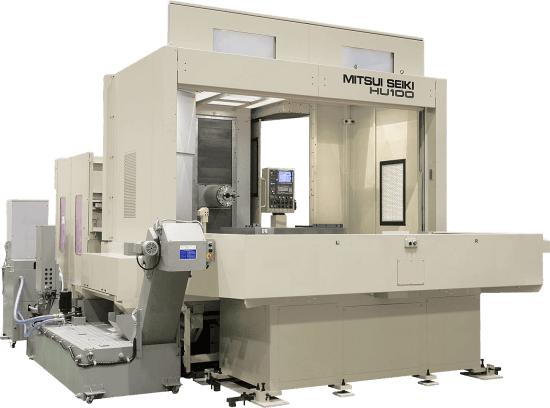

HU100
